Featured Installations & Case Studies

Discover how Goodall’s precision weighing and automation systems deliver tangible efficiency, zero downtime, and complete legal compliance for major industrial leaders.

High-Speed In-Line Dynamic Checkweighing & Rejection Food & FMCG
PepsiCo India Holdings

High-Speed In-Line Dynamic Checkweighing & Rejection

Challenge: Packaging speed of 180 packs/min led to occasional underfilled bags passing unnoticed, risking brand reputation and legal metrology fines under Weights & Measures rules.
Solution: Engineered custom IP69K stainless steel dynamic checkweighers with high-speed pneumatic flipper rejectors, integrated with line-side touchscreen statistical data loggers.
Proven Impact
100% automated package compliance, zero underfilled shipments dispatched, and real-time standard deviation reporting to QA.
Verified Deployment Request Case PDF
Automated Carbon Black & Chemical Formulation Batching Automotive & Rubber
MRF Tyres Limited

Automated Carbon Black & Chemical Formulation Batching

Challenge: Manual feeding of high-potency chemical curatives caused batch variance and toxic powder dust exposure to plant operators on the mixing floor.
Solution: Designed a sealed micro-ingredient dosing skid utilizing 8 loss-in-weight gravimetric feeders, dust-extraction hoods, and closed-loop Siemens S7-1500 PLC recipe automation.
Proven Impact
Batch repeatability improved to ±0.05%, cycle time slashed by 28%, and zero operator contact with raw chemical additives.
Verified Deployment Request Case PDF

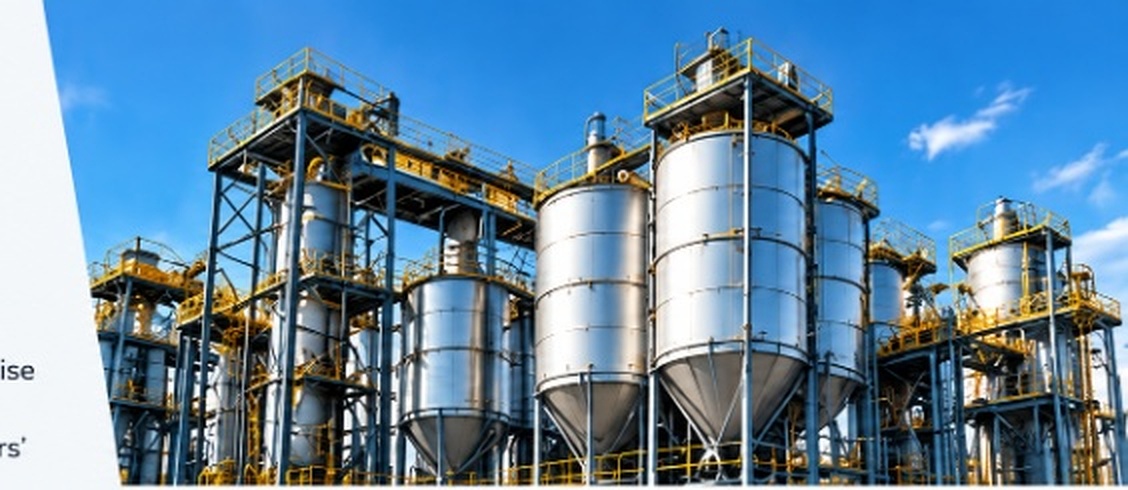

Turnkey Cattle Feed Formulation & Bagging Plant Agriculture & Feed
Kerala Livestock Development Board

Turnkey Cattle Feed Formulation & Bagging Plant

Challenge: KLDB required a high-capacity multi-grain formulation facility with automated grain weighing, molasses dosing, and rapid bag packaging with legal-for-trade certification.
Solution: Turnkey delivery of 4 storage silos on load cells, 2-ton batch mixer scale, micro-liquid dosing skid, and a high-speed twin-spout electronic bagging machine.
Proven Impact
Successfully commissioned 15 T/h continuous production capacity with NABL-verified legal calibration and automated batch reporting.
Verified Deployment Request Case PDF
Precision Hydraulic Transducer Calibration Rig Defense & Heavy Instrumentation
Instrumentation Limited (Govt. Enterprise)

Precision Hydraulic Transducer Calibration Rig

Challenge: Verification and routine recalibration of heavy load cells up to 150 metric tons required extreme thermal stability and Class 0.5 accuracy.
Solution: Supplied custom multi-axis hydraulic loading frame with Class E2 reference load cell array, 24-bit delta-sigma digital indicators, and certified calibration software.
Proven Impact
Accredited NABL test facility commissioning with total uncertainty below 0.02% across full dynamic span.
Verified Deployment Request Case PDF
Overland Bulk Fertilizer Belt Conveyor Weighers Chemicals & Fertilizers
Fertilisers And Chemicals Travancore (FACT)

Overland Bulk Fertilizer Belt Conveyor Weighers

Challenge: Highly corrosive damp urea and phosphate dust routinely corroded load cell housings and fouled mechanical knife-edge pivots on old scales.
Solution: Installed multi-idler stainless steel 316 dynamic belt weighers with hermetically laser-welded IP68 load cells and non-contact digital speed tachometers.
Proven Impact
Over 3 years of maintenance-free continuous operation, tracking over 2.5 million tons of bulk raw material transfers without sensor failure.
Verified Deployment Request Case PDF
Unmanned RFID Weighbridge & Mega-Silo Inventory Telemetry Cement & Aggregates
UltraTech Cement Terminal

Unmanned RFID Weighbridge & Mega-Silo Inventory Telemetry

Challenge: Congestion of over 250 trucks per day caused 45-minute weighbridge wait times, manual entry errors, and untracked bulk silo stockouts.
Solution: Engineered 2 fully automated pitless weighbridges with long-range RFID scanners, ANPR cameras, automated traffic barriers, and cloud-linked silo load cells.
Proven Impact
Average truck cycle time dropped from 45 min to under 3 min, eliminated operator ticketing fraud, and delivered live ERP stock levels.
Verified Deployment Request Case PDF
